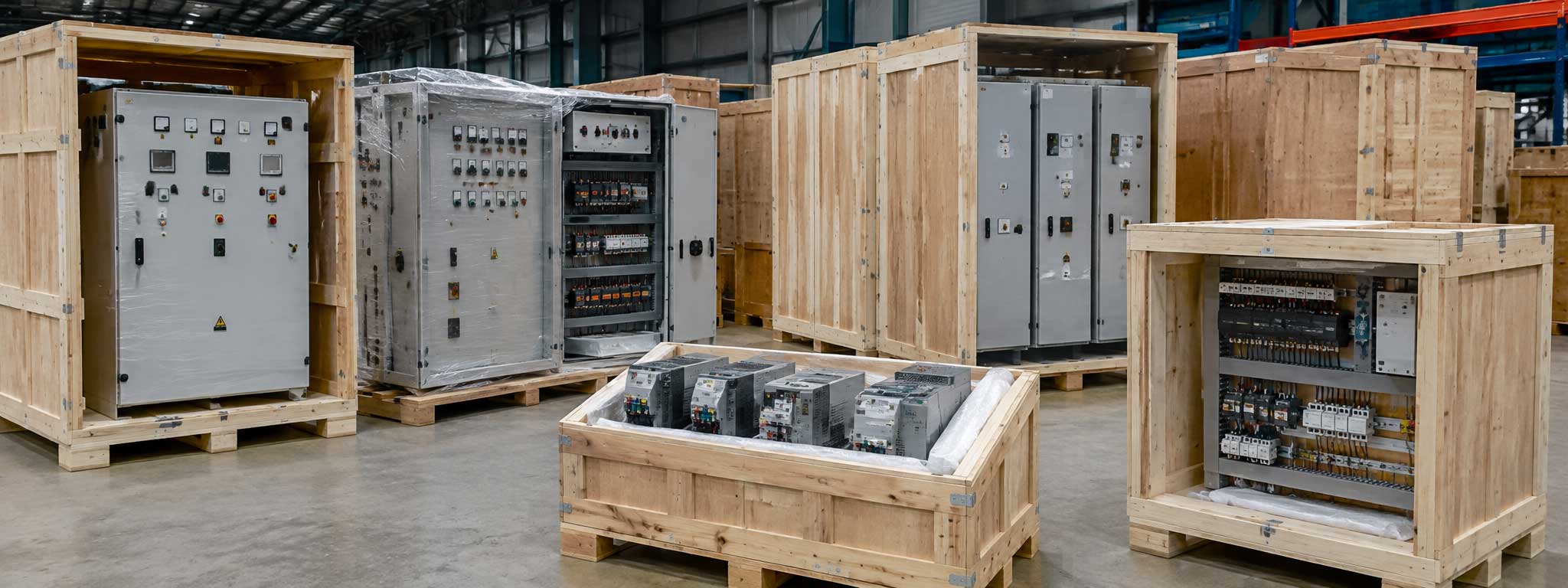

Electrical & Automation Equipment Packaging Solutions for Safe Machinery Transportation
Electrical equipment packaging requires more than simply placing products inside a wooden box. Control panels, switchgear assemblies, PLC systems, VFD panels, automation cabinets, electrical enclosures and related components can combine sensitive electronics, metal structures, wiring, terminals and precision-mounted devices.
During transportation, these systems may face vibration, impact, improper handling, dust, humidity and condensation. Export shipments add further exposure to long transit periods, container environments, multiple handling points and, for sea freight, potentially humid or saline conditions.
Choudhary Wooden Packers provides customized industrial wooden packaging for machinery and equipment. Depending on the equipment and transportation requirement, packaging can combine wooden crates, plywood boxes, skids, pallets, internal protection, moisture barriers, VCI protection, lashing and export-oriented packaging.
Packaging Requirements of the Electrical & Automation Equipment Industry
Electrical and automation equipment can vary considerably in size and construction. A small automation control unit may require a compact protective box, while a large MCC, PCC, PLC, VFD or electrical control panel may require a custom-built wooden structure with a strong supporting base.
Important packaging considerations include:
- Equipment dimensions and weight: The packaging must accommodate the actual equipment without creating unnecessary movement.
- Control components: PLCs, HMIs, drives, relays, meters and other electronic components can require protection against impact and excessive vibration.
- Metal surfaces: Painted, plated or exposed metal surfaces may need protection from moisture and corrosion during extended storage or transit.
- Protruding components: Cable glands, connectors, switches, displays and external fittings can require additional clearance.
- Doors and moving sections: Electrical cabinet doors and access panels should remain protected against unintended opening or impact.
- Wiring and terminals: Exposed connections need suitable protection against physical damage, dust and moisture.
- Forklift handling: The package may require a suitable base or skid that permits controlled lifting.
- Storage duration: Equipment remaining in storage for extended periods may require a different moisture-control approach from equipment being delivered locally.
- Export transportation: International shipments can require additional moisture, corrosion and phytosanitary considerations.
For this reason, packaging should be selected according to the actual equipment, route, handling method and storage conditions rather than using one standard box design.
Typical Machinery & Equipment
| Machinery / Equipment | Packaging Concern | Recommended Protection |
|---|---|---|
| PLC Control Panels | Sensitive electronic modules, wiring and controls can be affected by impact, vibration and moisture. | Custom wooden box/crate, internal cushioning and moisture protection where required |
| MCC Panels | Large dimensions, weight and protruding electrical components require stable support. | Heavy-duty wooden box or crate with reinforced base and securing |
| PCC Panels | Large cabinet structures need protection during lifting, loading and transit. | Heavy-duty crate/box with suitable skid or pallet base |
| VFD Panels | Drives and electronic components require protection against shock, vibration and environmental exposure. | Closed wooden box, internal protection and moisture control where appropriate |
| APFC Panels | Electrical components and cabinet surfaces require controlled handling and protection. | Wooden crate/box with internal protection |
| Automation Control Cabinets | HMIs, PLCs, switches and wiring can be vulnerable to impact and dust. | Custom closed wooden packaging with protective wrapping |
| Electrical Distribution Equipment | Weight and cabinet dimensions can make handling and immobilization important. | Heavy-duty wooden crate or skid-based packaging |
| Switchgear Assemblies | Sensitive assemblies and external fittings need protection from impact and movement. | Reinforced wooden crate/box with blocking and securing |
| Industrial Sensors & Automation Components | Smaller precision components may be vulnerable to shock and contamination. | Plywood boxes, protective inserts or smaller wooden crates |
| Electrical Spare Parts | Individual components may require segregation and protection during transportation. | Wooden cases or palletized protective packaging |
The exact packaging design should be based on the manufacturer's handling instructions, equipment drawings where available, dimensions, weight and transportation conditions.
Common Packaging Challenges
Heavy and Large Electrical Cabinets
PCC, MCC and other industrial panels can be bulky and difficult to handle. The packaging base must support the load while also providing practical access for lifting equipment.
Sensitive Electronic Components
PLC modules, drives, HMIs, communication devices and other electronics may be sensitive to shock, vibration and mishandling. Packaging should limit unnecessary movement inside the crate.
Protruding Components
Displays, switches, cable glands, connectors and other external fittings can create vulnerable points. The crate should provide adequate clearance around these components.
Moisture and Humidity
Electrical equipment can be particularly sensitive to moisture. Condensation during transportation or storage can contribute to corrosion or electrical damage.
Multiple Handling Points
Equipment may pass through factories, warehouses, loading areas, trucks, ports and destination facilities. Each transfer introduces another opportunity for impact or movement.
Long-Distance and Export Transit
Long transit periods increase the importance of equipment immobilization and environmental protection. Sea freight can also expose packaging to humid conditions.
Storage Before Installation
Some electrical equipment reaches the destination well before installation. Packaging therefore may need to provide protection throughout the planned storage period, not just during transportation.
Recommended Packaging Methods
Wooden Crate Packaging
Wooden crates can provide a rigid external structure around electrical cabinets and equipment while allowing customized dimensions.
They are suitable where the equipment needs substantial physical protection but does not necessarily require a completely sealed enclosure.
Heavy-Duty Wooden Boxes
Closed wooden boxes are useful when electrical equipment needs greater protection from external impact, dust and handling conditions.
They are particularly relevant for larger control panels, automation cabinets and equipment being transported over longer distances.
Plywood Boxes
Plywood boxes can be useful for equipment requiring a more enclosed and relatively smooth protective structure. They are also suitable for smaller electrical assemblies and components when a full heavy timber construction is unnecessary.
Wooden Skids
Skids provide a stable supporting base for heavy electrical cabinets. They can simplify lifting and help distribute equipment weight during handling.
Wooden Pallets
Pallets can be suitable for smaller electrical equipment, packaged components and accessories where standard pallet handling is practical.
The pallet should be selected according to the equipment's dimensions, weight distribution and handling requirements.
Internal Protection
Internal protection may include:
- Protective wrapping
- Cushioning
- Edge protection
- Blocking
- Bracing
- Component segregation
- Clearance around sensitive fittings
The objective is to reduce movement and prevent the package structure from transferring unnecessary impact directly to vulnerable components.
Lashing, Blocking and Chocking
Heavy equipment should be positioned securely on its base. Appropriate blocking, Chocking or lashing can help prevent movement during truck or container transportation.
The securing arrangement should be designed around the equipment's weight, center of gravity, lifting points and transportation method.
Wooden Box / Crate / Skid / Pallet Solutions
| Packaging Solution | Suitable For | Main Protection | Typical Application |
|---|---|---|---|
| Wooden Crate | Control panels and cabinets | Physical protection with ventilation options | Domestic and selected export shipments |
| Heavy-Duty Wooden Box | Large or sensitive electrical equipment | Enclosed impact and handling protection | Long-distance transportation |
| Plywood Box | Smaller equipment and components | Enclosed protective packaging | Automation components and electrical assemblies |
| Wooden Skid | Heavy cabinets and panels | Stable load-bearing base | MCC/PCC/control panels |
| Wooden Pallet | Smaller packaged equipment | Base support and handling | Warehouse and road transportation |
| Heat-Treated / Export Packaging | International shipments where applicable | Phytosanitary compliance for regulated wood packaging | Export cargo |
Wooden Crates
Crates can be customized around control panels, switchgear and automation cabinets. They can provide structural protection while maintaining practical handling access.
Heavy-Duty Wooden Boxes
These are appropriate when the equipment needs a more enclosed protective structure. They can be designed around large cabinets, panels and sensitive assemblies.
Plywood Boxes
Plywood packaging can be useful for compact automation equipment, electrical components and equipment where a closed box is preferred.
Wooden Skids
Skids are particularly useful for large and heavy electrical cabinets. They establish the equipment's supporting base and can be incorporated into the overall securing arrangement.
Wooden Pallets
Pallets work well for appropriately sized electrical components, accessories and prepared packages that will be moved using pallet-handling equipment.
Heat-Treated / Export Packaging
International shipments using regulated solid-wood packaging may be subject to destination-country phytosanitary requirements. ISPM 15 establishes internationally recognized phytosanitary measures for regulated wood packaging material used in international trade.
Importantly, ISPM 15 requirements apply to regulated wood packaging material, while certain processed wood materials such as plywood are treated differently under the standard. Destination-country requirements should therefore be checked for each shipment.
Moisture & Corrosion Protection
Moisture protection is particularly relevant for electrical and automation equipment because humidity and condensation can affect metal surfaces, terminals, connectors and other components.
Depending on the equipment and transit conditions, packaging may incorporate:
VCI Protection
VCI materials can be considered for suitable metal components where corrosion protection is required during storage or transportation.
Moisture Barrier Packaging
Barrier films can help separate equipment from external moisture. Their suitability depends on the equipment design and the required packaging environment.
Aluminium Foil Vacuum Packaging
For sensitive equipment requiring a high level of environmental isolation, aluminium barrier packaging with suitable sealing and moisture-control measures may be considered.
Desiccants
Desiccants can be used inside an appropriately sealed package to control residual moisture. The quantity and configuration should be determined according to the package volume and expected conditions.
Heat Shrink Protection
Heat-shrink film may provide an additional external layer against dust and environmental exposure. It should not automatically be treated as a substitute for a properly designed moisture-barrier system.
Domestic Transportation Packaging
For transportation within Delhi NCR or other parts of India, packaging design should account for road movement, loading and unloading, warehouse handling and the number of transfers expected.
The packaging plan may include:
- Strong base/skid construction
- Appropriate lifting access
- Equipment blocking and securing
- Lashing where required
- Protective wrapping
- Corner and edge protection
- Clearance around control panels and displays
- Internal cushioning
- Identification and handling markings
- Protection against dust and moisture where required
For large PCC, MCC or automation cabinets, the packaging should also consider the equipment's center of gravity and how it will be lifted from the factory to the vehicle and from the vehicle at destination.
Export & Seaworthy Packaging
Export transportation introduces additional variables compared with local road delivery.
Electrical and automation equipment shipped internationally may encounter:
- Extended transit periods
- Humidity and condensation
- Sea-air exposure
- Container handling
- Multiple loading and unloading stages
- Port handling
- Long periods before installation
- Repeated movement during logistics operations
For suitable equipment, an export package may combine a heavy-duty wooden crate or box with internal immobilization and moisture/corrosion protection.
For sea freight, the packaging strategy should be determined by the expected route, transit duration, equipment sensitivity and container environment.
Where regulated solid-wood packaging is used, applicable ISPM 15 requirements and destination-country rules should be confirmed before dispatch. The IPPC maintains country-specific information regarding implementation of ISPM 15.
On-Site Industrial Packaging
On-site packaging can be useful when electrical or automation equipment needs to be packed at the manufacturing facility before dispatch.
This approach may be appropriate when:
- The equipment is already installed or positioned at the factory.
- The equipment is too large to move conveniently before packaging.
- Final measurements must be taken at the packing location.
- The package needs to be built around the actual equipment.
- The equipment requires preparation before dispatch.
- The customer needs packaging completed at its premises.
Choudhary Wooden Packers can provide industrial packaging solutions based on the equipment and site requirements. Specific lifting, rigging or material-handling equipment should be confirmed for each project rather than assumed.
Our Electrical & Automation Equipment Packaging Process
Understand the equipment type, dimensions, weight, destination and transportation method.
Review the physical configuration, protruding components, doors, controls, connectors and vulnerable areas.
Determine the packaging dimensions and supporting requirements.
Select a crate, box, skid, pallet or combination based on the equipment and shipment conditions.
Prepare an appropriately sized supporting structure for the equipment.
Position the equipment correctly while considering balance and handling access.
Protect sensitive components and vulnerable external fittings.
Where required, incorporate suitable VCI, barrier, desiccant or other environmental protection.
Build the external packaging around the equipment while maintaining suitable clearances.
Secure the equipment to minimize unwanted movement during transportation.
Check the package, access points, protection and securing arrangement.
Prepare the packed equipment for the intended transportation and handling process.
The exact sequence can vary depending on the equipment and project requirements.
Related Services
Industrial Machinery Packaging
Customized packaging for electrical panels, automation equipment and industrial machinery.
On-Site Industrial Packaging
Packaging support at the customer's facility when equipment needs to be packed before dispatch.
Wooden Crate Packaging
Custom crates for electrical cabinets, panels and industrial equipment.
Heavy-Duty Wooden Box Packaging
Enclosed packaging for larger or more sensitive equipment requiring greater external protection.
Wooden Pallet Packaging
Pallet-based solutions for suitable electrical components and packaged equipment.
Heavy-Duty Skid Packing
Load-bearing skid solutions for large electrical cabinets and heavy assemblies.
VCI Packaging
Corrosion-control packaging for suitable metal components exposed to humidity or extended storage.
Vacuum / Barrier Packaging
Environmental protection for equipment requiring stronger moisture isolation.
Export Packaging
Packaging designed around international transportation and handling requirements.
Seaworthy Packaging
Additional protection considerations for equipment traveling through marine logistics environments.
Lashing & Chocking
Equipment securing to reduce unwanted movement during transportation.
Why Choose Choudhary Wooden Packers for Electrical & Automation Equipment Packaging?
Electrical and automation equipment requires packaging designed around its physical configuration rather than a standard box size.
Choudhary Wooden Packers' relevant capabilities include industrial machinery packaging, wooden crates, heavy-duty wooden boxes, wooden pallets, skids, export packaging and protective packaging. The supplied business information also identifies on-site packaging, VCI/anti-corrosion protection, vacuum packaging, heat-shrink packaging and lashing/Chocking among the company's potential service offerings.
For electrical equipment, the appropriate combination depends on factors such as equipment dimensions, weight, component sensitivity, destination, transportation mode and expected storage conditions.
For buyers in Delhi NCR, Delhi, Gurgaon/Gurugram, Noida, Greater Noida, Ghaziabad and Faridabad, an industry-specific packaging assessment can help determine whether the shipment needs a crate, box, skid, pallet, moisture barrier or additional corrosion protection.
Frequently Asked Questions
The choice depends on equipment size, weight, sensitivity and transportation conditions. Wooden crates, heavy-duty boxes, plywood boxes, skids and pallets can all be suitable for different applications.
Large panels should have a suitable supporting base and should be positioned and secured to minimize movement. External fittings and sensitive controls should also receive appropriate protection.
Not necessarily. VCI protection is more relevant where suitable metal components face a corrosion risk during humidity exposure, extended storage or transportation. The requirement should be assessed for the specific equipment.
Yes, on-site packaging can be useful when equipment needs to be prepared or enclosed at the customer's factory before transportation. The exact approach depends on site conditions and equipment dimensions.
A heavy-duty closed wooden box may be suitable where the equipment requires enclosed physical and environmental protection. The internal protection and moisture-control strategy should be selected according to the shipment conditions.
Depending on the equipment and shipment, packaging may incorporate moisture barriers, suitable sealing, desiccants, VCI protection or other environmental-control measures.
Yes. Crates and boxes can be designed around the equipment's dimensions, shape, handling requirements and protection needs.
Where regulated solid-wood packaging is used for international trade, applicable phytosanitary requirements may apply. ISPM 15 provides the international framework, but destination-country rules should be checked for the specific shipment.
Useful information includes equipment dimensions, weight, photographs, drawings where available, destination, transportation mode, quantity, expected storage duration and whether the shipment is domestic or international.
