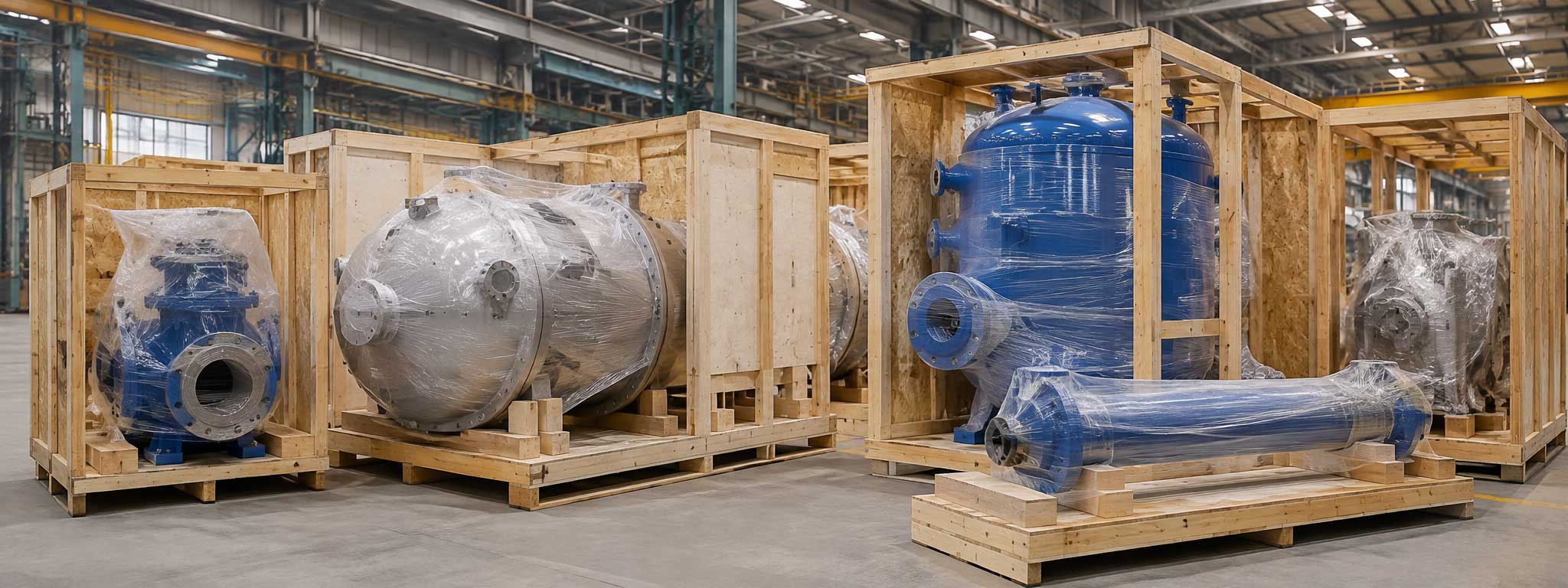

Chemical & Process Equipment Packaging Solutions for Safe Machinery Transportation
Chemical process equipment packaging requires more than a strong outer crate. Reactors, pressure vessels, heat exchangers, pumps, filtration systems, skids, control panels and other process equipment can combine high weight, irregular dimensions, exposed metal surfaces, sensitive fittings and components that can be affected by moisture, corrosion, shock or vibration.
During domestic transportation, equipment may experience repeated loading, unloading, forklift handling, road vibration and sudden movement. Export shipments introduce additional exposure to humidity, salt air, long transit periods, container movement and multiple handling points. Packaging therefore needs to be selected according to the equipment, route, storage period and environmental risks.
Choudhary Wooden Packers provides industrial wooden packaging solutions including wooden crates, plywood boxes, pallets, heavy machinery packaging, on-site crate packing, VCI protection, aluminium foil vacuum packaging, heat-shrink packaging, lashing and export packaging.
Packaging Requirements of the Chemical & Process Equipment Industry
Chemical and process equipment can vary significantly in size, weight and configuration. A small metering or filtration unit may require a compact plywood box, while a large reactor, vessel or process skid may need a reinforced wooden structure with substantial base support.
Packaging planning should consider:
- Equipment weight: Heavy vessels, pumps, compressors and skids require properly designed bases and load-bearing structures.
- Dimensions: Oversized equipment may require open crating, custom skids or on-site packaging.
- Irregular geometry: Nozzles, flanges, valves, piping connections and protruding components can require individual protection.
- Metal surfaces: Carbon steel, alloy steel and other exposed metal parts may require corrosion protection during storage or transportation.
- Instrumentation: Gauges, control components, sensors and electrical equipment may require additional cushioning and environmental protection.
- Moving or removable parts: Components may need to be secured separately to prevent movement inside the package.
- Moisture sensitivity: Long-distance or marine transportation can expose equipment to humidity and condensation.
- Handling requirements: Forklift pockets, lifting access and suitable base construction should be considered before fabrication.
- Storage duration: Equipment intended for temporary transit requires a different protection strategy from equipment stored for several months.
For export consignments, packaging can combine structural wooden protection with moisture and corrosion-control methods depending on the cargo and shipping conditions.
Typical Machinery & Equipment in Chemical & Process Equipment
| Machinery / Equipment | Packaging Concern | Recommended Protection |
|---|---|---|
| Process Reactors | Heavy construction, nozzles, flanges and exposed surfaces | Heavy-duty skid, wooden crate/box, blocking and securing, corrosion protection where required |
| Pressure Vessels | High weight, cylindrical geometry and protruding fittings | Custom skid or reinforced crate with suitable blocking and lashing |
| Heat Exchangers | Tube connections and sensitive external components | Crate or skid, end protection, cushioning and secure restraint |
| Industrial Pumps | Rotating assemblies, shafts and relatively compact precision components | Plywood box or wooden crate, internal cushioning and movement prevention |
| Compressors | Weight, vibration-sensitive components and mechanical assemblies | Heavy-duty base, protective wrapping, cushioning and custom crating |
| Filtration Systems | Housing, filter assemblies and instrumentation | Wooden crate or box with internal protection |
| Process Skids | Integrated piping, valves, instruments and irregular dimensions | Custom skid, open/closed crate and blocking/bracing |
| Agitators & Mixing Equipment | Shafts, motors and projecting components | Custom base support, protective wrapping and reinforced crating |
| Control Panels | Electrical/electronic components and moisture sensitivity | Enclosed plywood/wooden box with cushioning and moisture protection where appropriate |
| Industrial Tanks & Vessels | Large dimensions and handling constraints | Heavy-duty skid or custom wooden support structure |
The final packaging specification should be based on the equipment's actual dimensions, weight, centre of gravity, handling method and transport route rather than equipment category alone.
Common Packaging Challenges in Chemical & Process Equipment
Heavy and Oversized Equipment
Reactors, vessels, tanks and process skids can be difficult to move and position. The packaging base must support the equipment without becoming a weak point during lifting or transportation.
Irregular Shapes and Protruding Components
Nozzles, valves, flanges, pipe connections and instruments can extend beyond the main equipment body. These areas need adequate clearance and protection to prevent impact damage.
Vibration and Shock
Road transport can subject equipment to continuous vibration and occasional impact. Sensitive instrumentation, rotating assemblies and mechanical components may require cushioning and immobilization.
Moisture and Humidity
Metal equipment can be exposed to humidity during storage and transportation. Condensation can become particularly relevant when equipment moves between different temperature and humidity conditions.
Corrosion
Unprotected metallic surfaces may require appropriate corrosion-control measures, particularly for long storage or international transportation. VCI protection, barrier packaging and desiccants may be selected according to the equipment and environment.
Multiple Handling Stages
Export cargo may pass through factories, warehouses, trucks, ports, containers and destination facilities. Packaging therefore needs sufficient structural strength and handling access for the expected route.
Recommended Packaging Methods for Chemical & Process Equipment
Wooden Crate Packaging
Wooden crates provide structural protection around equipment while allowing customized internal supports. They can be useful for pumps, filtration systems, instruments, process assemblies and equipment requiring protection from handling impacts.
Heavy-Duty Wooden Boxes
Closed heavy-duty boxes are appropriate when the equipment requires greater enclosure and protection from external handling, dust or environmental exposure.
Plywood Boxes
Plywood boxes can provide a relatively rigid enclosed structure for smaller or medium-sized process equipment, instruments, electrical panels and components.
Heavy-Duty Skids
Skids are useful for large equipment where a full enclosed box is unnecessary or impractical. They provide a stable base for equipment and can accommodate lifting and securing requirements.
Pallet Packaging
Pallets are suitable for smaller components, accessories, spare parts and equipment that can be safely unitized for forklift handling.
VCI Packaging
VCI materials can be considered for metallic components where corrosion protection is required. Choudhary Wooden Packers specifically offers VCI packaging for metallic components and machinery.
Aluminium Foil Vacuum Packaging
For equipment requiring enhanced moisture and environmental protection, aluminium foil vacuum barrier packaging may be combined with suitable internal protection and desiccants. Choudhary Wooden Packers lists aluminium foil vacuum packaging as an export-oriented moisture-barrier solution.
Heat Shrink Packaging
Heat-shrink film can provide an additional external protective layer against dust, weather exposure and handling conditions. It can be particularly useful around palletized or oversized equipment.
Lashing, Chocking and Blocking
Equipment should not be allowed to move freely inside a crate or on a skid. Choudhary Wooden Packers provides lashing and Chocking services intended to prevent cargo movement during transit.
Wooden Box / Crate / Skid / Pallet Solutions
| Packaging Solution | Suitable For | Main Protection | Typical Application |
|---|---|---|---|
| Wooden Crate | Machinery and process assemblies | Impact and handling protection | Pumps, filters, equipment assemblies |
| Heavy-Duty Wooden Box | Sensitive or high-value equipment | Enclosure and structural protection | Instruments, machinery and export cargo |
| Plywood Box | Compact or medium equipment | Rigid enclosed protection | Control panels, pumps, components |
| Heavy-Duty Skid | Large/heavy machinery | Base support and handling stability | Reactors, vessels, process skids |
| Wooden Pallet | Smaller packaged goods | Stable handling base | Components, accessories and spare parts |
| Export/Heat-Treated Packaging | International shipments | Structural packaging plus applicable export requirements | Sea and air freight |
Wooden Crates
Use a crate when the equipment needs structural protection but does not necessarily require complete enclosure. Internal timber supports can be designed around equipment geometry.
Heavy-Duty Wooden Boxes
A heavy-duty box is more appropriate where the equipment needs a closed protective enclosure. Internal bracing and cushioning can be incorporated according to the equipment.
Plywood Boxes
Plywood boxes can be useful for compact equipment, instrumentation and electrical components where a rigid enclosure is required without building a large solid-timber structure.
Wooden Skids
A skid can be a practical solution for heavy process equipment that needs strong base support and forklift or lifting access.
Wooden Pallets
Pallets work well for smaller, unitized equipment and components that can be securely strapped, wrapped or otherwise stabilized.
Heat-Treated / Export Packaging
For international shipments, the packaging specification should account for the destination country's applicable requirements for wood packaging material. Choudhary Wooden Packers lists heat-treated and export packaging among its services.
Moisture & Corrosion Protection
Moisture protection can be particularly important for chemical and process equipment containing exposed metal surfaces, electrical components, instruments or precision mechanical assemblies.
Depending on the equipment and shipment, protection may include:
- VCI film or VCI materials
- Aluminium foil barrier packaging
- Vacuum sealing
- Desiccants
- Moisture barrier films
- Protective wrapping
- Heat-shrink film
- Sealed wooden boxes
VCI protection is particularly relevant where metallic surfaces need corrosion protection during storage or transit. For longer export routes, aluminium foil vacuum packaging can provide a barrier against external moisture when correctly applied.
The appropriate combination depends on the equipment material, internal condition, expected transit duration, storage environment and shipping method. It should not be assumed that every machine requires vacuum or VCI packaging.
Domestic Transportation Packaging
For domestic transportation across Delhi NCR and other Indian locations, packaging should account for road vibration, sudden braking, loading and unloading, warehouse movement and forklift handling.
Choudhary Wooden Packers can adapt packaging according to the cargo and handling requirements, including pallet packing, heavy machinery packaging, wooden crates, skids, lashing and protective packaging.
Key considerations include:
- Stable base support for the equipment.
- Blocking and Chocking to reduce unwanted movement.
- Lashing to secure the load.
- Cushioning around sensitive components.
- Protection of protruding parts such as valves and instruments.
- Forklift access where the package will be mechanically handled.
- External wrapping where dust or weather exposure is expected.
For large or immovable process equipment, on-site packaging can reduce the need to move unprotected equipment before it has been secured.
Export & Seaworthy Packaging for Chemical & Process Equipment
International shipments introduce additional packaging considerations. Sea freight may expose cargo to humidity, condensation, salt-laden environments, extended transit periods and repeated handling.
A suitable export package may combine:
- Heavy-duty wooden crates or boxes
- Custom skids
- VCI protection
- Aluminium foil vacuum barrier packaging
- Desiccants
- Internal cushioning
- Lashing and blocking
- Heat-treated wooden packaging where applicable
Choudhary Wooden Packers specifically lists seaworthy packaging, aluminium foil vacuum packaging, VCI protection and heavy-duty wooden crates among its export packaging capabilities.
For air freight, packaging priorities can differ. Lower package weight, compact construction, shock resistance and secure handling become more important. Choudhary Wooden Packers also provides airworthy packaging services.
Wood packaging requirements vary according to the destination and shipment. Therefore, applicable import and phytosanitary requirements should be confirmed for each export consignment rather than assuming one standard applies everywhere.
On-Site Industrial Packaging
Large reactors, vessels, process skids and other equipment may be difficult or risky to move to a separate packaging facility before protection is installed.
On-site packaging can be useful when:
- Equipment is too large to relocate before packing.
- The machinery must be prepared at the manufacturing facility.
- Components require inspection before packaging.
- The equipment needs custom crate fabrication around its installed dimensions.
- Moving the unpacked equipment would create unnecessary handling risk.
Choudhary Wooden Packers describes its on-site service as including equipment assessment, measurement, custom crate design and on-location fabrication. Its service information also states that VCI or vacuum/barrier packaging can be integrated when required.
The exact handling arrangement should be planned according to the site, equipment weight, lifting requirements and available access.
Our Chemical & Process Equipment Packaging Process
A typical project can follow the stages below, with the sequence adjusted to the equipment and logistics plan:
Review equipment type, destination, transport mode, storage period and packaging objectives.
Assess dimensions, weight, shape, protruding components, instruments and exposed surfaces.
Determine the required skid, crate, box or pallet dimensions and handling access.
Select cushioning, wrapping, VCI, moisture barriers, vacuum packaging or other protection where appropriate.
Build a suitable load-bearing base according to the equipment.
Position the equipment correctly and account for its centre of gravity and handling points.
Protect sensitive components, instruments, flanges, connections and exposed surfaces.
Apply the selected VCI, barrier, vacuum or desiccant system where required.
Fabricate the outer wooden structure around the protected equipment.
Restrict equipment movement using suitable blocking, Chocking and lashing.
Check package integrity, handling access, identification and visible protection.
Prepare the packaged equipment for loading and its intended domestic or export route.
Related Chemical & Process Equipment Packaging Services
Industrial Machinery Packaging
Customized packaging for process machinery and industrial equipment based on dimensions, weight and transportation requirements.
Heavy Equipment Packaging
Suitable for heavy process machinery requiring reinforced support, custom packaging and secure movement.
On-Site Crate Packaging
Useful for oversized or sensitive equipment that should be packed at the customer's facility.
Wooden Crate Packaging
Provides customized structural protection around process equipment and components.
Heavy-Duty Wooden Box Packaging
Suitable for equipment requiring enclosed and reinforced protection.
Skid Packing
Provides a stable base for heavy vessels, machinery and process assemblies.
VCI Packaging
Designed to provide corrosion protection for suitable metallic equipment and components.
Aluminium Foil Vacuum Packaging
Provides barrier protection for equipment requiring enhanced moisture protection during storage or export.
Seaworthy Export Packaging
Designed for equipment travelling through demanding international marine logistics conditions.
Airworthy Packaging
Designed around the weight, handling and protection requirements associated with air transportation.
Lashing & Chocking
Helps restrict cargo movement during transportation.
Heat Shrink Packaging
Provides an additional protective wrapping layer around suitable industrial equipment and packages.
Why Choose Choudhary Wooden Packers for Chemical & Process Equipment Packaging?
Choudhary Wooden Packers, established in 1993, provides industrial wooden packaging solutions, including wooden pallets, wooden crates and plywood boxes. We specialize in industrial machinery packaging, heavy equipment packaging, export packaging, on-site packaging, and seaworthy and airworthy packaging solutions.
For chemical and process equipment requirements, relevant capabilities include:
- Customized wooden packaging
- Industrial machinery packaging
- Heavy equipment packaging
- Wooden crates and boxes
- Plywood boxes
- Wooden pallets and skids
- On-site crate packaging
- VCI packaging
- Aluminium foil vacuum packaging
- Seaworthy export packaging
- Airworthy packaging
- Heat-shrink protection
- Lashing and Chocking
The company also publishes service information for on-site packaging, including measurement, custom crate fabrication and packaging execution at the customer's premises.
For a project quotation, the packaging team should assess the equipment dimensions, weight, handling method, destination, transport mode and required protection level.
Frequently Asked Questions
The choice depends on the equipment. Heavy vessels and process skids may require heavy-duty skids or reinforced crates, while pumps, instruments and smaller assemblies may suit plywood boxes or enclosed wooden crates.
Heavy equipment should have a properly designed support base and should be secured against movement. Blocking, Chocking, lashing and suitable protective materials can be selected according to the equipment and route.
Not necessarily. VCI is mainly relevant when metallic surfaces require corrosion protection. Its use depends on the material, storage period, humidity and transportation conditions.
Yes. On-site packaging can be useful for large or immovable equipment. Choudhary Wooden Packers provides on-site assessment, crate design and packaging execution.
It may be appropriate when equipment needs enhanced moisture and environmental protection, particularly for longer storage or export transportation.
The box should be selected according to equipment dimensions, weight, handling method, transport mode and environmental exposure. Heavy-duty wooden or plywood boxes may be appropriate for enclosed export protection.
Depending on the equipment, protection can include VCI materials, moisture-barrier packaging, vacuum packaging, desiccants and suitable sealed outer packaging.
Choudhary Wooden Packers lists seaworthy, airworthy and export packaging services, including wooden crates, moisture protection, VCI and aluminium foil vacuum packaging.
Useful information includes equipment dimensions, approximate weight, photographs or drawings, destination, transport mode, required dispatch date, storage duration and whether the shipment is domestic or international.
Need Custom Packaging for Your Chemical & Process Equipment?
Protect your reactors, vessels, pumps, heat exchangers, process skids, filtration systems and other industrial equipment with a packaging plan designed around the actual cargo and transport conditions.
Choudhary Wooden Packers can assess your equipment and recommend an appropriate combination of wooden crates, boxes, skids, pallets, moisture protection, corrosion protection and securing methods.
Request a Quote for your chemical and process equipment packaging requirement.
